Floatwheel XR-V Power Kit

Everything You Need to Know About the Floatwheel XR-V Kit

In short, the XR-V kit is a very easy solution to quickly turn your Onewheel into a VESC. It's pre programmed, so just install the provided light bars, controller, and BMS and it will work with all the other components of your Onewheel.

Situations You'd Want The GT-V Kit

• Your Onewheel just broke, but you are limited with firmware locks on how to fix it.
• You just want more power from your board!

Some More Technical Info:

1. The XRV Power Kit is a drop in replacement upgrade for your onewheel XR
2.  It increases your XR power from 2500w to 4200w, +68% power increase!
3.  If you choose to upgrade your XR with the MTE hub n52, it will further increase the power to 5200w,
4. With the XRV upgrade, you will have same torque as the GTS.
5. Higher total power output than the GTS. (stock GTS at 3800w). Same range as Pint S.

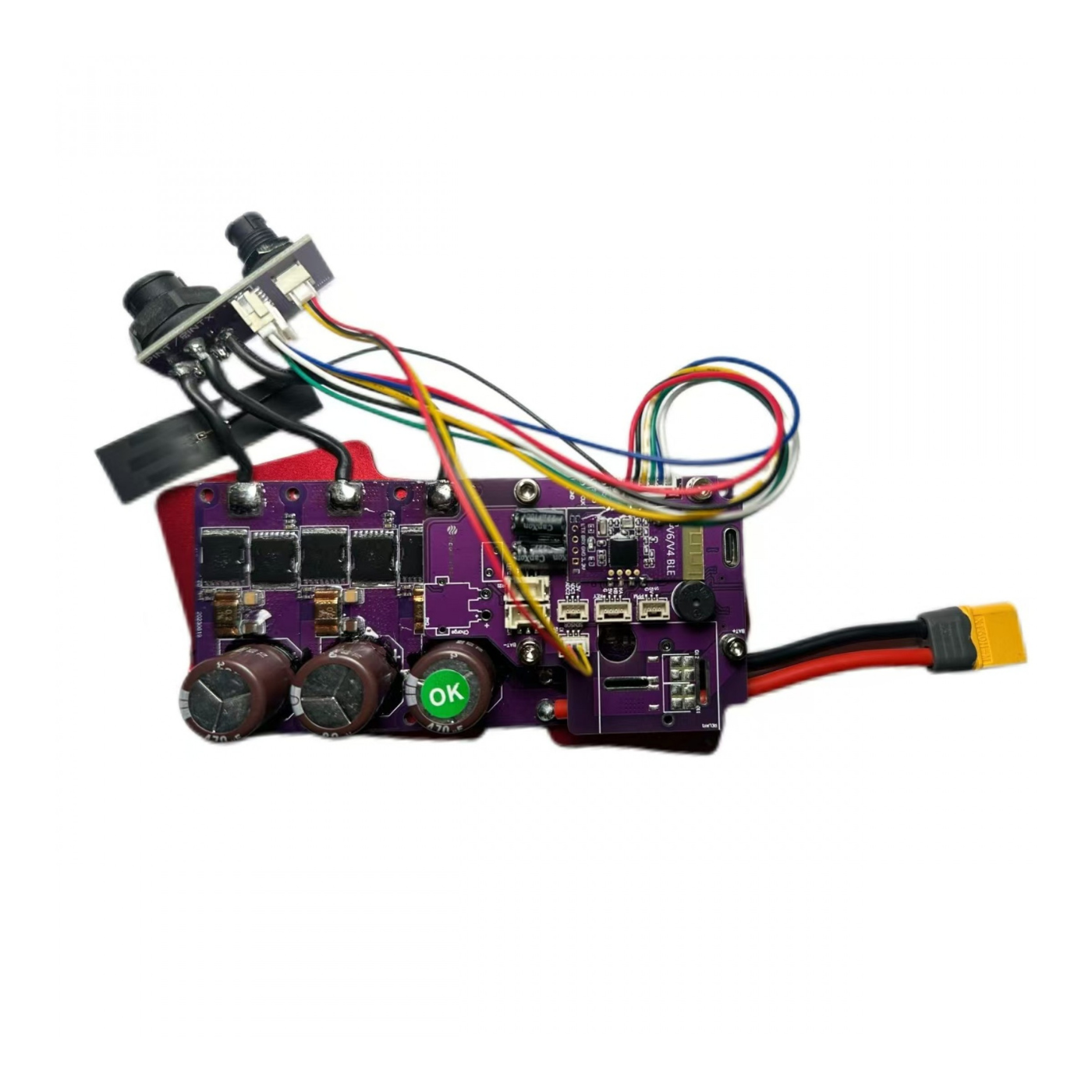

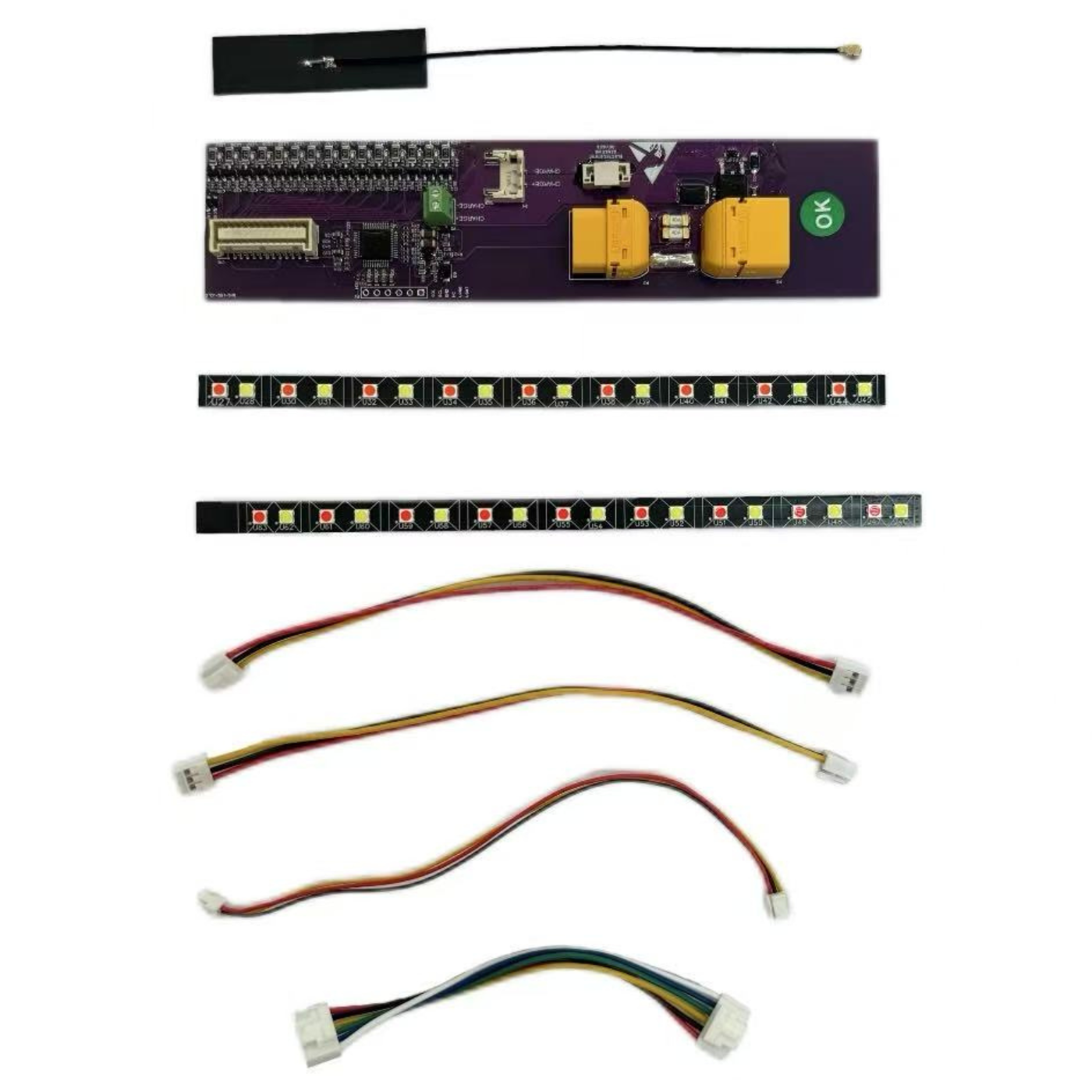

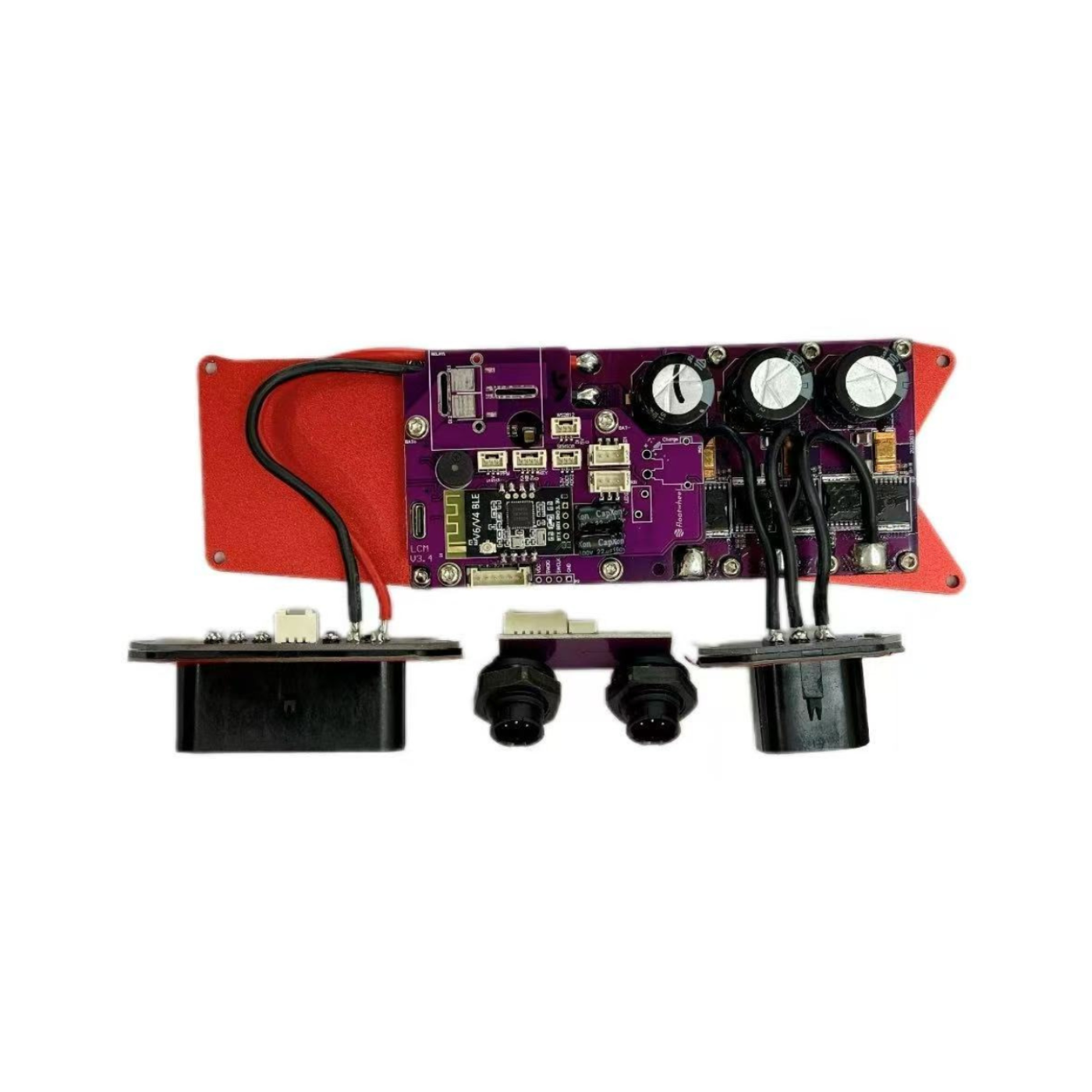

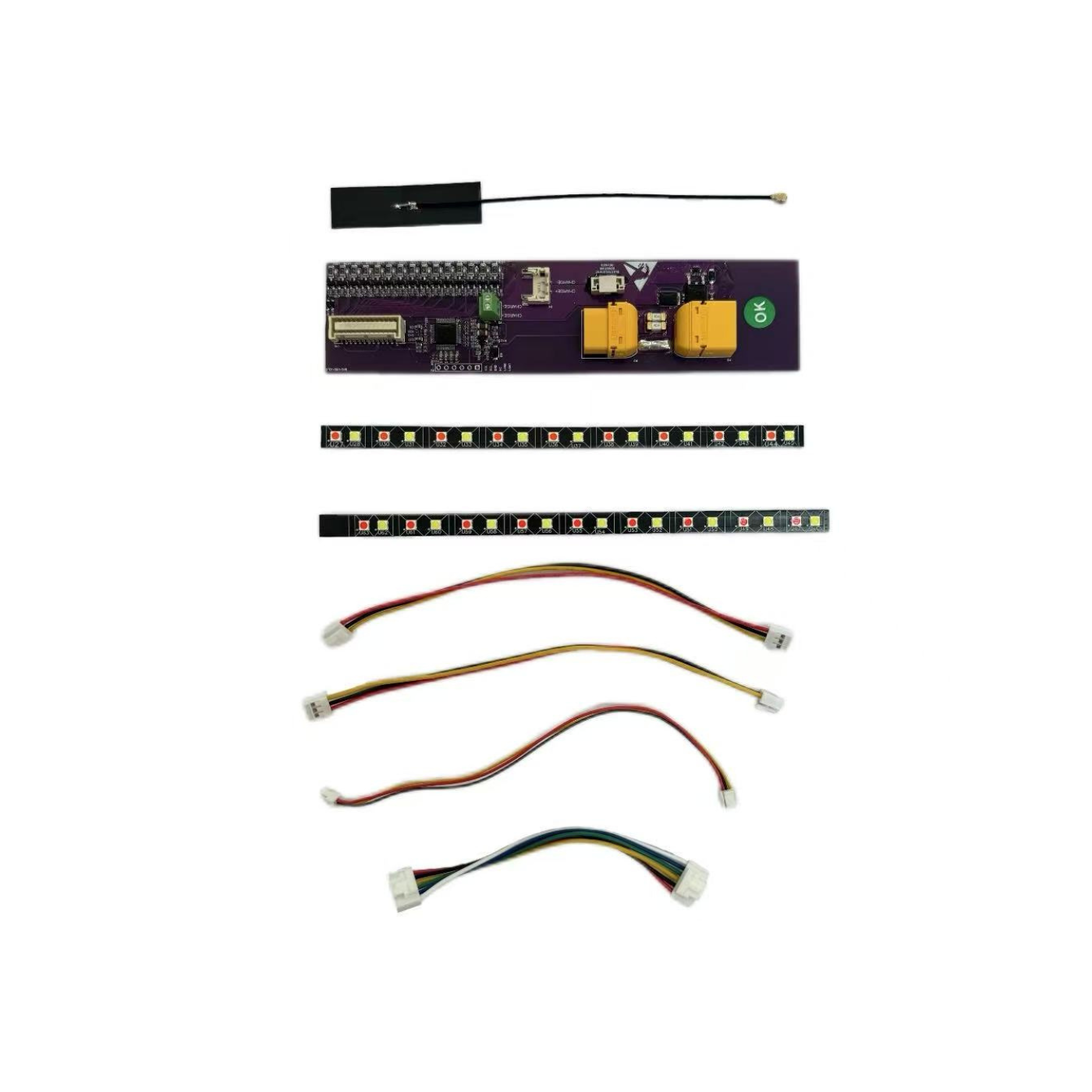

6. The XRV kit comes with a drop in replacement ESC and a BMS and front and rear light.

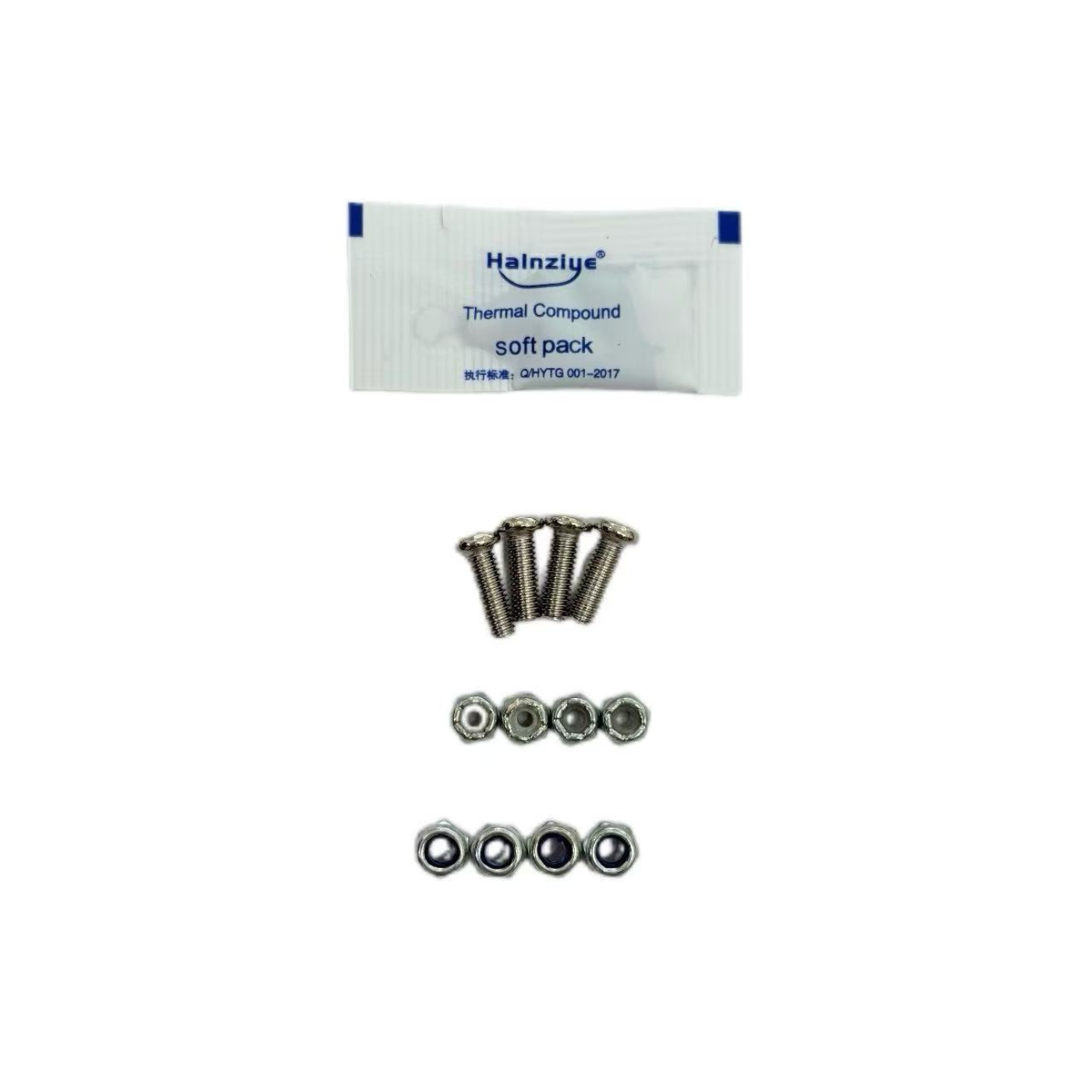

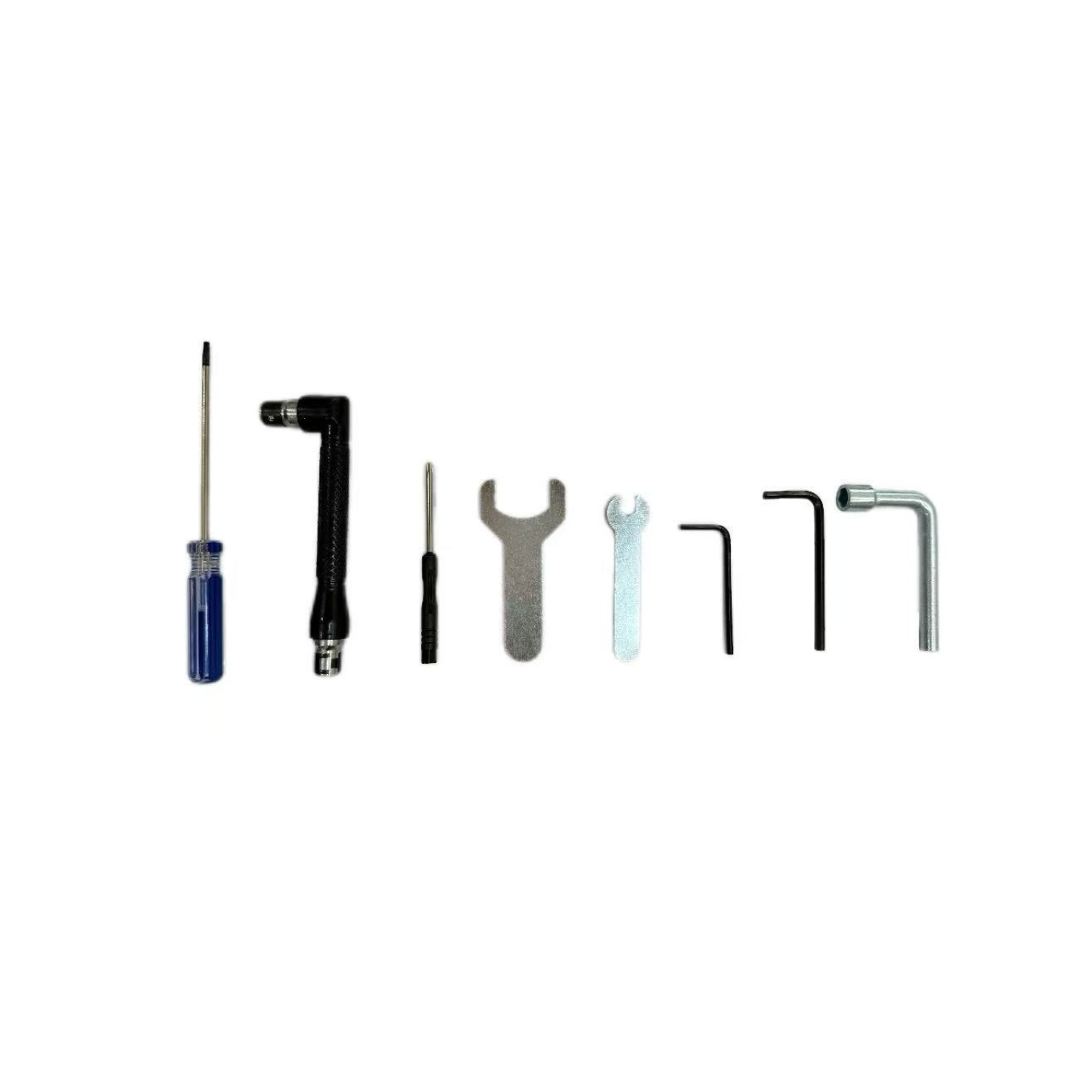

7. It also comes with all the tools needed except for a Plier to remove the  ESC nuts
8.  The software is already tuned and IMU calibrated, no need to config anything, just install and ride.
9. The XRV enables all kinds of aftermarket rails, because the Pitch angle offset is configurable.
10. The XRV doesn't require the ESC pair to BMS, it is 100% right to repair.

ide the hub.

Q&A

Does it affect my battery range?

- The XRV enables you to ride much more aggresively, however, if you test the crusing range, the change in range is barely noticeable.

   Actually the XRV uses a more efficient power stage than stock(lower Rdson, less heat), under  the same riding style, the range will not be affected.

 Does it affect my battery life?

- The XRV's power draw is within the limitation of the battery pack's performance. And the battery pack will work in very comfortable range in most of the time.

My XR doesn't power on, can I use the XRV kit?

- Yes, as long as your battery pack is healthy, you can test your battery pack with a multimeter, it must have more than 40V.

 Can I use my original light bars?

- Nope, we supply our own lightbars included in the kit, which is a lot brighter than OEM ones.

Can I use my XR's stock bms?

- Yes, it will need some modification to solder a thick wire to bypass bms, we recommend you to just use the BMS we provided.

My Pint has a aftermarket battery pack, can I use the XRV?

-Yes, as long as your aftermarket battery pack works on the original BMS, it will work with the XRV

 -CBXR IS SUPPORTED

-20S2P cells are supported but you will need a new bms from 3rd parties like fungineer, and potentialy need some soldering to replace the plugs.

Is the BMS smart? Can I monitor my cell level?

-Nope, it is a charge only BMS, it does a good job balance and charge your battery safely, it also has individual cell balancing indicator, if the light shows blue, that means that group of cell is balancing itself.
